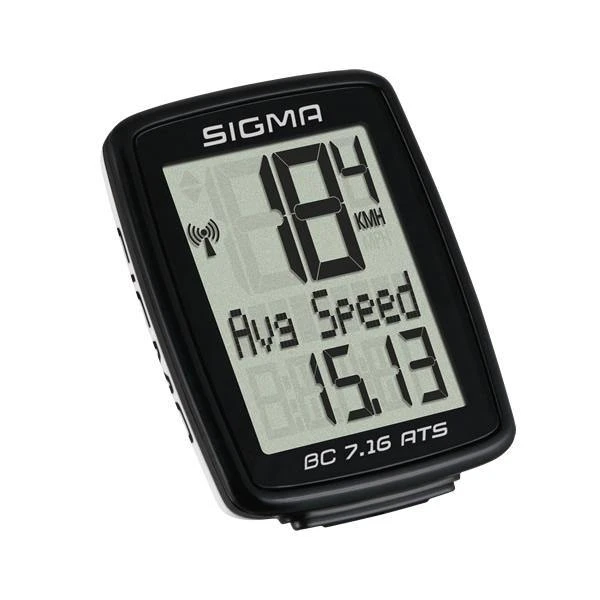

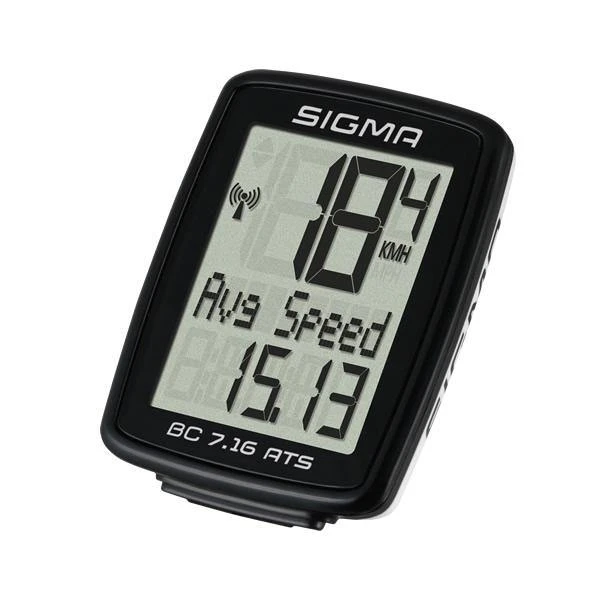

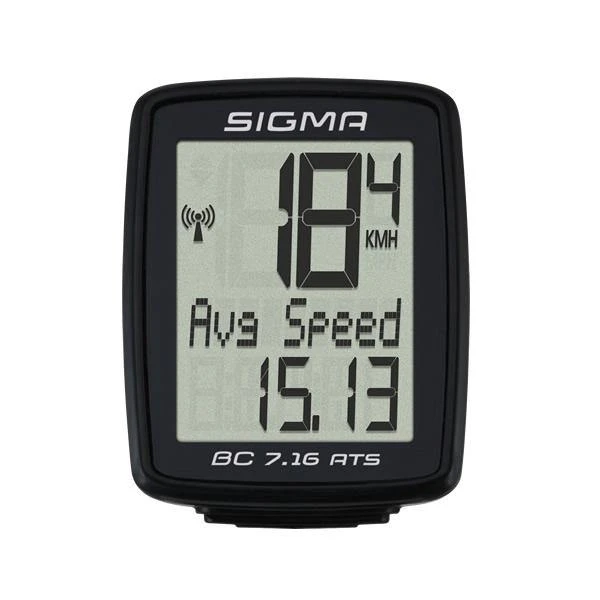

Sigma BC 7.16 ATS Wireless Cycling Computer

Bike Functions:

• Day trip
• Ride Time / Training time
• Actual Speed
• Total Ride Time / Overall training time
• Total distance
• Average speed
• Clock (12/24h)
• Automatic start/stop

General:

• Device Settings adjustable via DATA CENTER
• Data communication via TOPLINE 2016 docking station
• ATS transmission
• Programmable based on tire selection
• Service interval adjustable via UFSB
• UFSB 2016 compatible
• Tool-free mounting
• Available languages: 7
• Watertight in accordance with IPX8

Everything you need, nothing you don’t
In addition to the basic cycling functions, the BC7.16 ATS also calculates average speed and keeps track of total accumulated ride time. The large screen and its sleek design will look great on any bike.

The indispensable companion on a trip
With a ride time of up to 100 hours, you can record and save the trips of your complete cycling holiday.

Wireless transmission
Thanks to the wireless, analog, encoded ATS transmission developed by SIGMA SPORT, cables are no longer required with this device.
The wireless transmitter on the fork continually transmits the signal from the magnets to the integrated receiver in the computer after each wheel rotation.

What language do you speak?
Whether English, German, French, Italian, Spanish, Dutch or Polish – you can select between 7 languages in the full text display.

Seven functions
In addition to the basic cycling functions, it also displays the total ride time and the average speed. A large display packed into a sporty design makes it an essential companion for every ride.

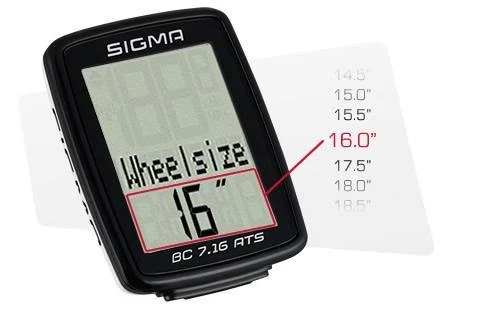

Predefined tire sizes
Setting the wheel size is extremely easy using the tire size. From 16 inches to 700C to 29 inches, the wheel size can be set easily using predefined tire sizes. Of course, it is also possible to manually enter the wheel size in millimeters.

Relevant data
Hidden total values
During a ride, the total values are hidden:

• Total Distance
• Total ride time

This reduces the number of times that you have to press a button to find a function while riding. When you stop, total values reappear.

Need a Break?
Don’t you hate it when you forget to start your computer after stopping for a snack or a cup of coffee? Yet, at the same time, we you also want batteries to last a long time.

With the new ATS transmission system, when you stop and take a break during a ride for up to two hours, the computer will auto wake without pressing a button.
When you see the antenna icon on the display, that means that the auto wake function is active. If the antenna is not shown, it means that the BC7.16 ATS turned itself off to conserve battery life. Simply press any button to start riding again.

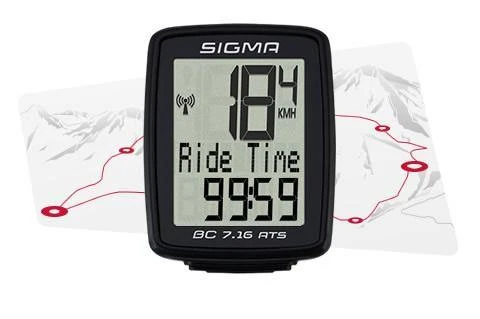

Ride time up to 100 h
With a ride time of up to 100 hours, you can record and save the trips of your complete cycling holiday.

Total ride time
In addition to total distance, the total ride time (accumulation of all of your rides) can also be displayed on the screen.

Bike service reminder
Thanks to the service interval, your bike mechanic can set a service reminder based on the number of kilometers/miles that your ride, making sure that your bike is tuned and ready for each ride.
The service interval is set using the UNIVERSAL FAST SETTING BOX. When service is due, a bike service icon will appear on your screen at the start of a ride. Simply press any button to dismiss the reminder until a later date.

Maximum display, minimum size
The new sleek, vertically orientated TOPLINE 2016 computers will look great on your stem or handlebar. We’ve maximized the display size and slimmed down the computer housing to show the largest, easiest to read numbers and letters possible.

Housing
Height x width x depth: 50 mm x 38,5 mm x 10,2 mm

Display
Height x width: 27 mm x 35 mm

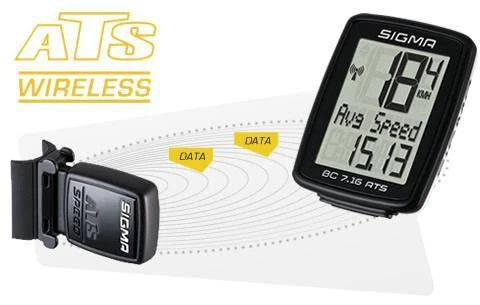

Analog Transmission System
ATS is SIGMA SPORT’s own, newly developed, analog encoded single‐channel wireless transmission system. The BC 7.16 ATS is one of many wireless bike computer options in the TOPLINE2016 product range.

The wireless transmitter on the fork securely transmits the signal from the magnets to the receiver (computer head) after each wheel rotation. Unlike most computers in its class, the BC7.16 ATS will reject any other wireless signal, preventing “cross talk” when riding close to another cyclist.

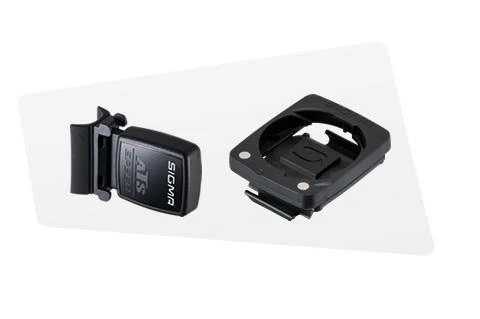

Tool-free mounting
The handlebar/stem bracket and the new ATS-transmitter can be easily mounted with O-rings or cable ties.

Data evaluation
The docking station enables the easy reading and analysis of your recorded data on a PC.

Watertight in accordance with IPX8
The BC 7.16 ATS is waterproof according to the international standard IPX 8. This means there is “protection against permanent immersion”. Nothing stands in the way during the next ride in the rain.

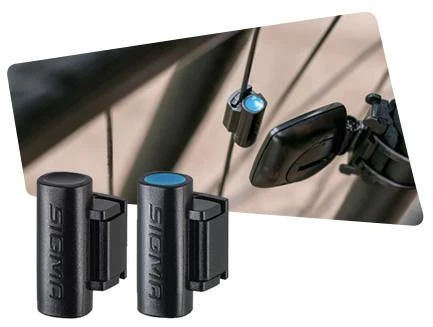

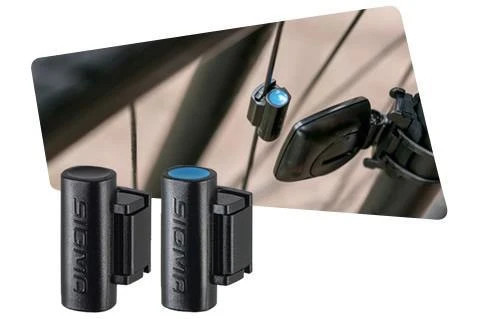

Click-magnets
Both new magnets (normal & power) are equipped with a click-mounting mechanism. This makes installation even easier. Devices can also be removed without tools.

In the box:

• Power magnet
• ATS / STS handlebar bracket
• ATS transmitter
• 2 O-RINGS (Ø 35mm, 45mm)
